Cylinder Kit w/Head, SSP-G 47mm Big Bore 75cc for 50cc 4-Stroke Yamaha Vino, Zuma

47mm SSP-G 75cc Big Bore Cylinder Kit w/Head for 50cc 4-Stroke Yamaha Scooters

SPECIFICATIONS:

• Upgrades to 75.6cc Displacement
• Bore: 47mm
• Overall Height (cylinder): 71.5mm
• Piston Pin Outer Diameter: 10mm
• Overall Piston Height: 30mm
• Piston Compression Height: 16mm
• Includes Extra Head Gasket
• 3 Valve Head
• Intake Valve Diameter: 15.5mm
• Exhaust Valve Diameter: 16.5mm
• Used on Fuel Injection Setup

COMPATIBILITY:

• C3 Giggle 50 4T L/C
• Vino 50 4T L/C
• Zuma 50F 4T L/C

SSP-G 47mm Big Bore Cylinder and Head Kit for the Yamaha Zuma 50F 4 Stroke Liquid Cooled Scooter and many other makes and models including the Vino Classic 50cc (4 stroke model). Upgrades to 75.6cc displacement!

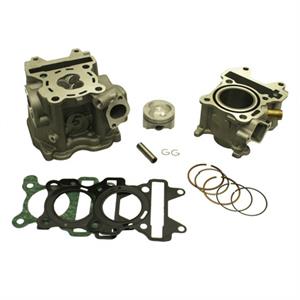

Includes cylinder, 3-Valve cylinder head, head gaskets, base gasket, piston, piston pin, piston rings and cir clips.

**NOTE: A FUEL PRESSURE REGULATOR OR FUEL INJECTION TUNER MUST BE USED WITH THIS CYLINDER KIT**

**MADE IN TAIWAN**
