Cylinder Kit, Naraku 42mm Big Bore 65cc for 50cc 4-Stroke A/C SYM, Lance Scooters

42mm Naraku 65cc Big Bore Cylinder Kit for 50cc 4-Stroke Air-Cooled SYM, Lance, Peugeot Scooters

SPECIFICATIONS:

• Upgrades to 63.7cc
• Cylinder Bore: 42mm
• Cylinder Sleeve Outer Diameter: 45.7mm
• Wrist Pin Diameter: 10mm
• Total Piston Height: 33mm

COMPATIBILITY:

• Lance – Cabo 50 4T, Cali 50 4T, Havana 50 4T, PCH 50 4T, PCH Delivery 50 4T, Soho 50 4T
• SYM – Allo 50 4T, Cello 50 4T, Mio 50 4T, Orbit 50 4T, Symphony 50 4T, Symply 50 4T
• Peugeot – Vivacity 50 4T, Speedfight 50 4T, Kisbee 50 4T

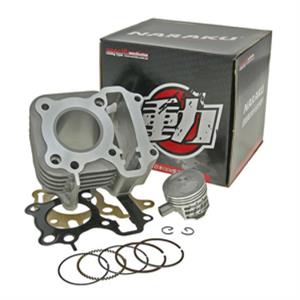

For those who do not want to go radical with performance tuning such as 47mm or 51mm, but fancy a little more grunt, there is a 65cc cylinder kit with noticeably better drive than the 50cc original. This cylinder kit will iron out holes in the drive as well as on inclines. Kit includes cylinder, piston, piston ring set, oil scraper rings, gudgeon pin, gaskets and circlips. This 63cc cylinder kit comes with special piston. The piston has a molybdenum friction-reducing coating on the piston skirt for the run-in period and 2 CNC-machined oil grooves to stabilise the oil coverage. Lubrication of the gudgeon pin is taken straight out of motorsport and is aided by additional oil holes and grooves.

For the SYM Mio, we recommend removing the black wire on the CDI and removing the de-restrictor “washer” from the variator for best performance.

**MADE IN TAIWAN**

**NOTE: Electrical, High Performance, Aftermarket items are non-returnable so please check photos and specifications before ordering.
