Cylinder Kit, Naraku 55mm Big Bore 113cc for 100cc 2-Stroke Air-Cooled Minarelli Based Scooters

55mm Naraku 113cc Big Bore Cylinder Kit for 100cc 2-Stroke Air-Cooled Minarelli Based Scooters

SPECIFICATIONS:

• Upgrades to 113cc
• Cylinder Bore: 55mm
• Cylinder Sleeve Outer Diameter: 59.2mm
• Wrist Pin Diameter: 14mm
• Cylinder Stud Spacing (Diagonal): 75mm
• Exhaust Port Diameter: 26mm
• Exhaust Stud Spacing: 48mm
• Overall Height of Cylinder: 85mm

COMPATIBILITY:

• Aprilia – Scarabeo 100 2T
• Benelli – Naked 100 2T, K2 100 2T
• Italjet – Millenium 100 2T
• MBK – Booster 100 2T, Nitro 100 2T, Ovetto 100 2T
• Yamaha – Aerox 100 2T, Neos 100 2T, Zuma 100 (BWS)

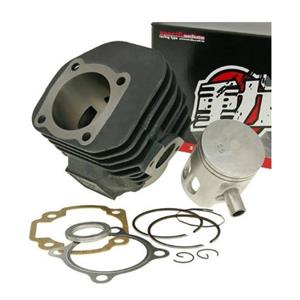

Naraku 113cc Air Cooled Minarelli Big Bore Cylinder Kit. Kit includes cylinder, 55mm piston, piston rings, 14mm piston pin, circlips, head gasket, base gasket and exhaust gasket.

When used in conjunction with a stock crankshaft the total displacement comes out to 113cc.

**NOTE: You may need to modify your engine case to accommodate the larger cylinder.**

**MADE IN TAIWAN**
