Cylinder Kit w/Head, Malossi 47mm MHR Replica Big Bore 70cc for 50cc 2-Stroke A/C Minarelli Based Scooters

47mm Malossi 70cc MHR Replica Big Bore Cylinder Kit for 50cc 2-Stroke A/C Minarelli Based Scooters

CYLINDER SPECIFICATIONS:

• Bore: 47mm
• Wrist Pin: 10mm
• Displacement: 70cc
• The MHR Replica line of cylinder was created especially for the International Scooter Trophy – 70cc Automatic Class.
• These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life.
• In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm.
• The MHR line is the results of Malossi’s many years of experience in European and National competitions.

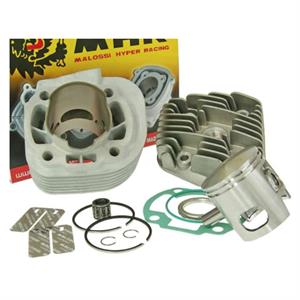

• These new cylinder kits are composed principally of cylinder – piston – ring – head.

COMPATIBILITY:

• Aprilia – Gulliver 50 2T, Rally 50 2T, Scarabeo 50 2T, Sonic 50 2T, SR 50 2T ’94-97
• Benelli – 491 GT 50 2T, K2 50 2T, K2 Naked 50 2T, Pepe 50 2T
• Beta – Ark 50 2T, Chrono 50 2T, Tempo 50 2T
• CPI – Hussar 50 2T ’02, Popcorn 50 2T ’02
• E-ton – Beamer 50 2T, Matrix 50 2T
• Genuine – Buddy 50 2T, Rough House 50 2T, Rattler 50 2T
• Malaguti – F10 50 2T, F12 Phantom 50 2T ’00, F15 Firefox 50 2T, Yesterday 50 2T, Ciak 50 2T, Centro SL 50 2T
• MBK – Equalis, Evolis, Fizz, Flipper, Forte, Hot Champ, Mach G, Ovetto 50, Sorriso ’96
• PGO – Ligero 50 2T, Big Max 50 2T, Comet 50 2T, Galaxy 50 2T, Star 50 2T, T-Rex 50 2T
• Yamaha – Axis 50 2T, Breeze 50 2T, Jog 50 2T, NEO S 50 2T, Why 50 2T, Zest 50 2T, Vino 50 2T, Zuma 50 2T ’02-11

This Malossi 70cc aluminum big bore cylinder kit uses a 10mm wrist pin and not the 12mm wrist pin. Please make sure that your scooteris compatible with this version before placing the order.

**MADE IN ITALY**

**NOTE: Electrical, High Performance, Aftermarket items are non-returnable so please check photos and specifications before ordering.
