Cylinder Kit w/Head, 52mm for 110cc 4-Stroke ATVs, Dirt Bikes, Go Karts

52mm Cylinder Kit w/Head for 110cc 4-Stroke ATVs, Dirt Bikes, Go Karts (152FMH Engine)

SPECIFICATIONS:

• Intake port diameter: 23mm (0.90″)
• Exhaust port diameter: 20mm (0.78″)
• Rocker/valve side measurement–Timing chain side mounting holes: 49mm [+/- 0.5mm]
• Rocker/valve side measurement–Plug side mounting holes: 47.5mm [+/- 0.5mm]
• Rocker/valve side measurement–From timing side to plug side mounting holes: 51.5mm [+/-0.5mm] AND 50.5mm [+/-0.5mm]
• Covers Not Included
• Timing Chain Sprocket: 28 Teeth
• Cylinder Diameter: 52.4mm (2.06″)
• Bolt Hole Spacing: 48mmx50mm (1.89″x1.97″)
• Air Inlet Hole Distance: 45mm (1.77″)
• Air Outlet Hole Distance: 45mm (1.77″)

COMPATIBILITY:

• Apollo – DB X4 110, DB-34
• BMS – ATV 110, Go Kart 110, Dirt Bike 110
• Coolster – QG-213A
• Coolster – ATV-3050AX, ATV-3050B, ATV-3050D
• Diamo – ATV 110
• Ice Bear – Scrub (PAD110-1), ATV 110
• Kinroad – ATV 110, Go Kart 110
• Motobravo – ATV 110, Go Kart 110
• NST – ATV 110, Go Kart 110, Dirt Bike 110
• Roketa – DB-16S, DB-18, DB-28, DB-30
• Roketa – ATV-03, ATV-08, ATV-15, ATV-20, ATV-25, ATV-29, ATV-32, ATV-40, ATV-48, ATV-58, ATV-59, ATV-69, ATV-70, ATV-76, ATV-79, ATV-86, ATV-93, ATV-94, ATV-98, ATV-102, ATV-106, ATV-107, ATV-114
• Roketa – Go Kart 110
• SSR – SR110
• Tank Sports – ATV 110
• Taotao – DB10, DB14, DB24
• Taotao – Boulder B1 110, ATA125D, TForce 110, Cheetah 110, ATA125F1 110
• Other Similar Models

Horizontal Honda Style 4-stroke Cylinder and Head Kit.

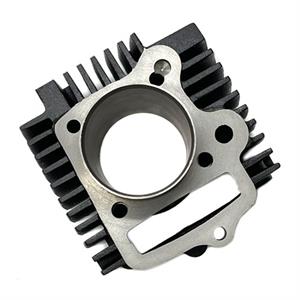

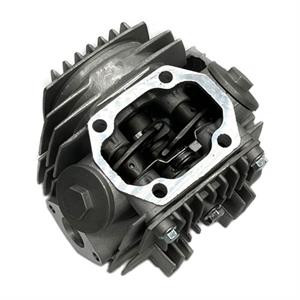

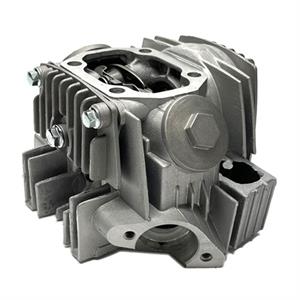

Kit includes complete cylinder head, cylinder, piston, rings, piston pin, circlips, head gasket, and base gasket.
